NAVAL ARCHITECTURE

Welcome to PATHPLUS, where innovation meets excellence in naval architecture. With our unwavering commitment to craftsmanship and cutting-edge technology, we specialize in crafting bespoke solutions for a wide range of vessels.

Whether it's a sleek cargo ship, a sturdy tanker, or a sophisticated hybrid powered container carrier, we deliver designs that redefine industry standards.

Where every ship sets sail with confidence.

Backed by years of experience and a passion for maritime engineering, our team ensures every detail is meticulously crafted for optimal performance and reliability. Trust us to navigate your vision from concept to reality, setting new benchmarks in efficiency and safety. Discover the difference with PATHPLUS - where every ship sets sail with confidence.

  • The MR Tanker IMO II/III
    LOA 179.9 m
    B 32.2 m
    Td 11.0 m
    Ts 13.3 m
    DWT@TS 50,000 MT
    Speed @Td 14.5 knots
    CSR 5400 kW
    FOC <19.5 t/day
    EEDI-3 -30% incl. all margin

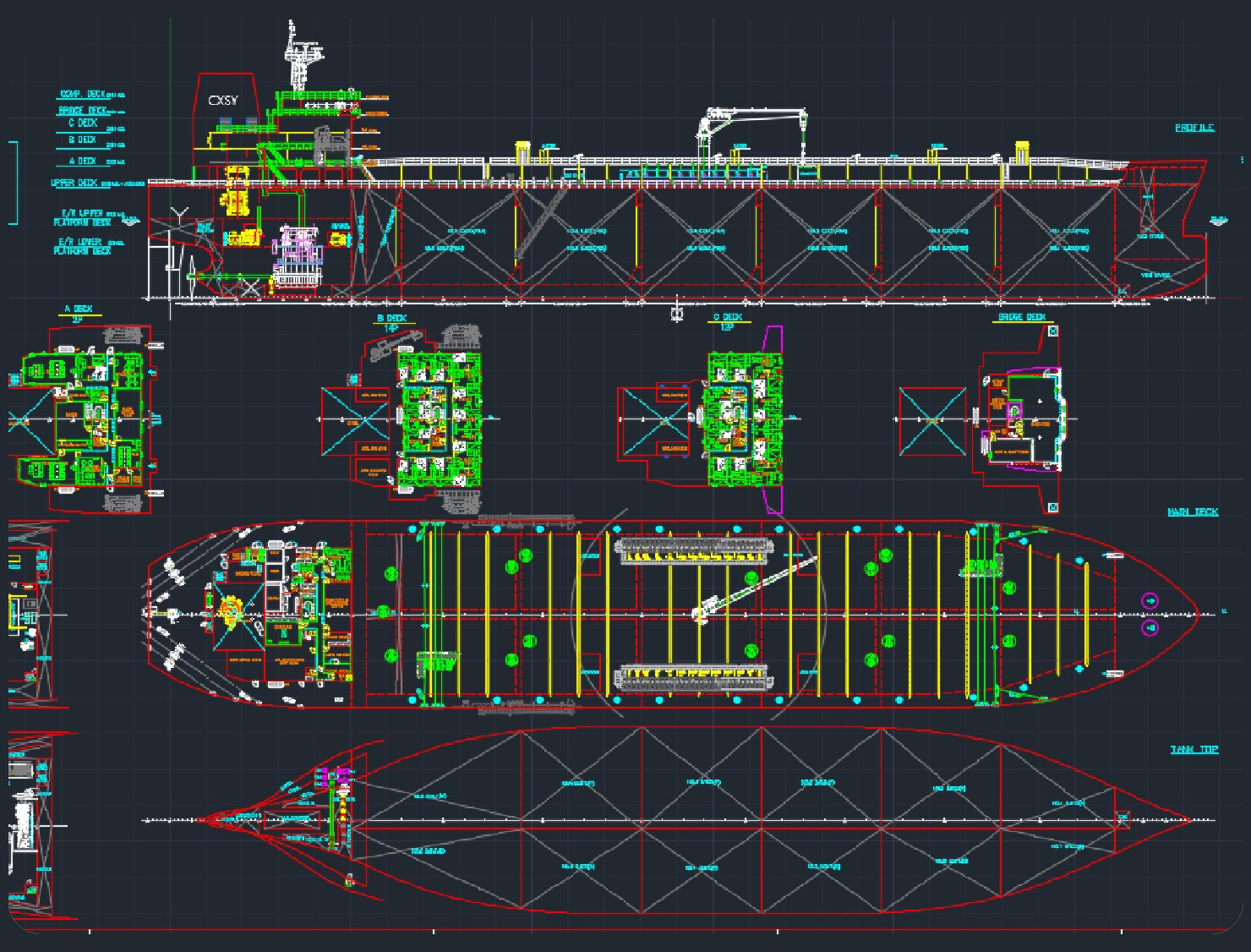

    The MR Tanker IMO II/III
  • The Aframax Tanker
    LOA 246.5 m
    B 44.0 m
    Td 13.5 m
    Ts 15.2 m
    DWT@TS 115,000 MT
    Speed @Td 14.5 knots
    CSR 8800 kW
    FOC <33.3 t/day
    EEDI-3 -30% incl. all margin

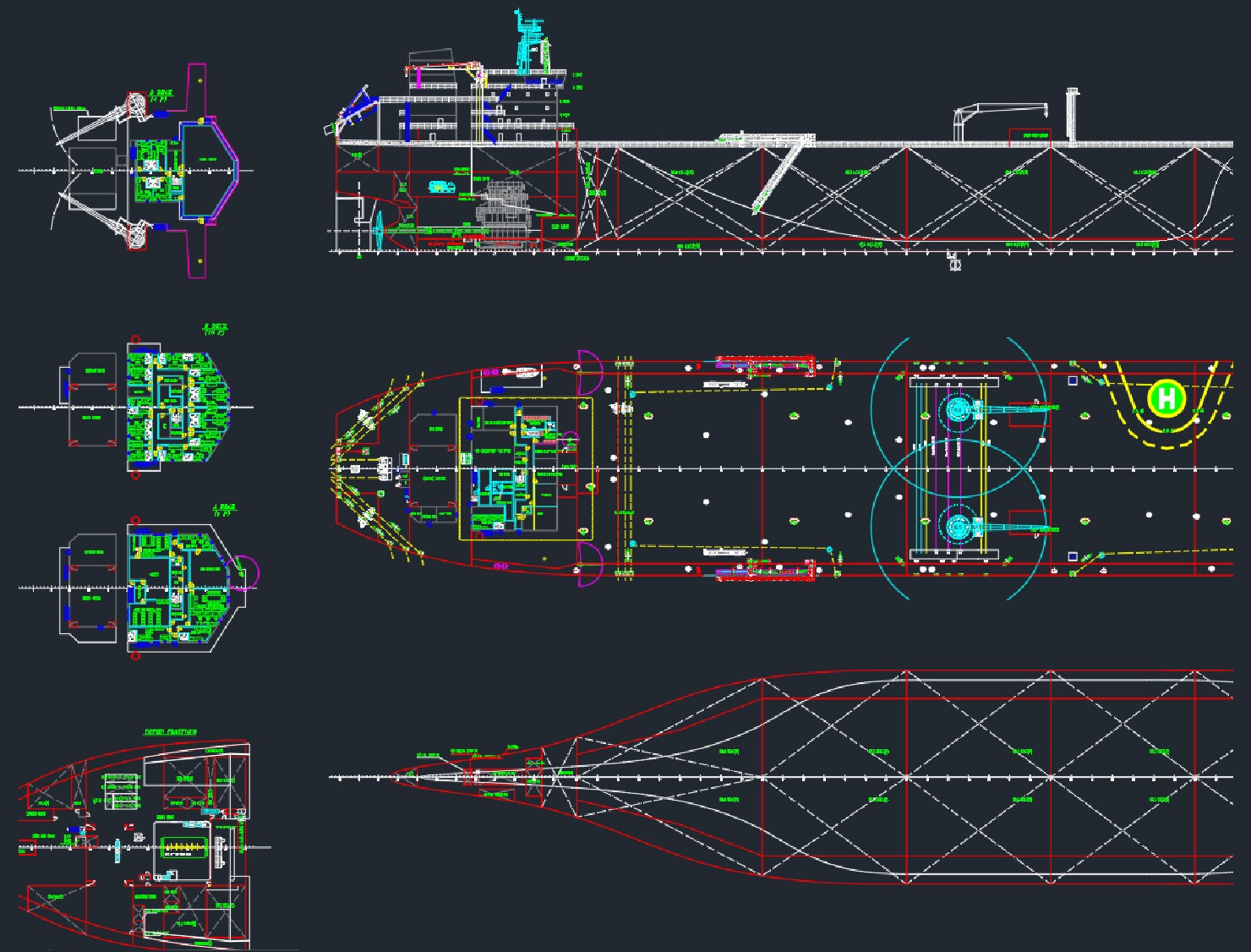

    The Aframax Tanker
  • The VLCC (Dual Fuel Ready)
    LOA 332.9 m
    B 60.0 m
    Td 20.5 m
    Ts 22.5 m
    DWT@TS 319,000 MT
    Speed @Td 14.5 knots
    CSR 15400 kW
    FOC <55.7 t/day
    EEDI-3 -30% incl. all margin

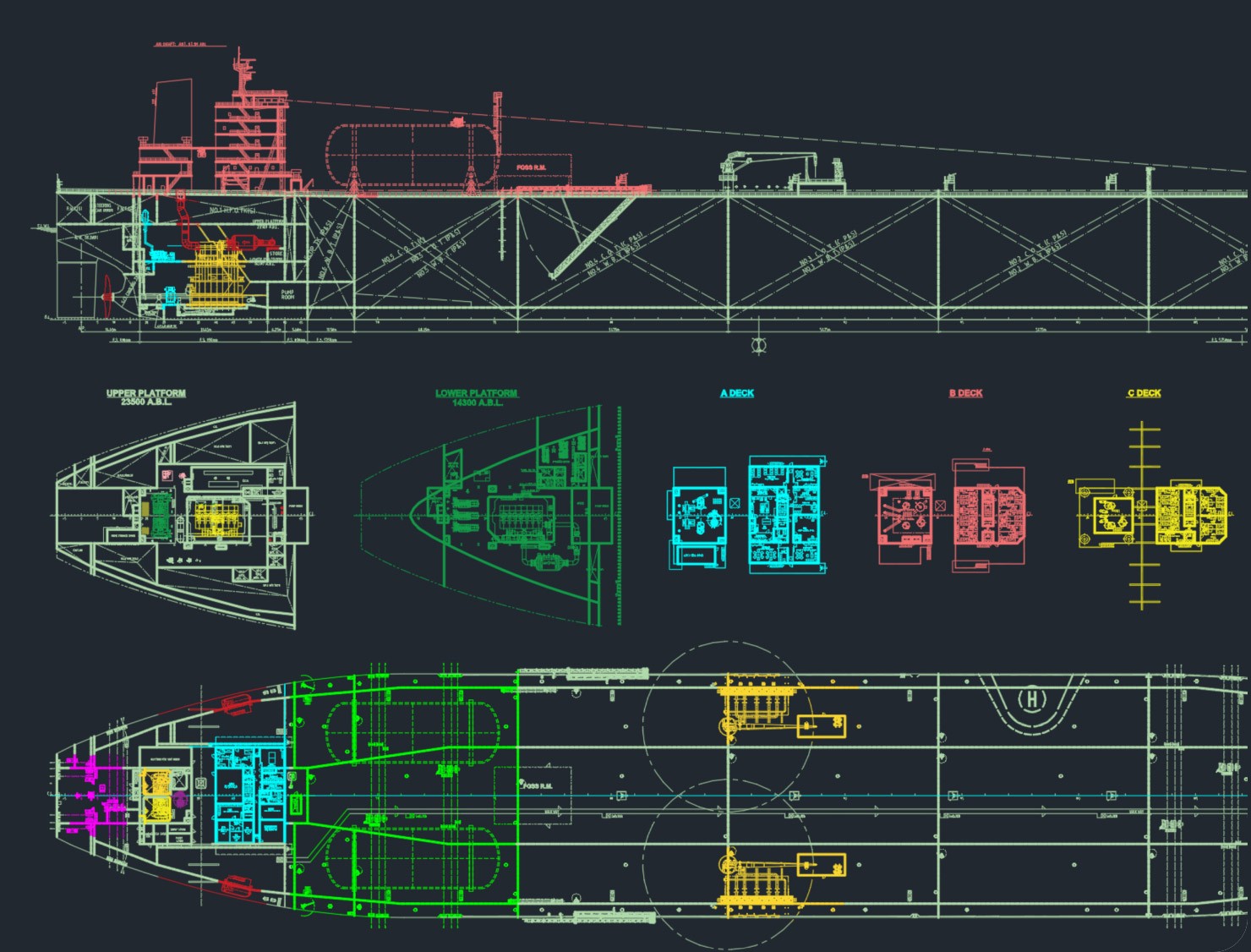

    The VLCC (Dual Fuel Ready)
  • The Ultramax BC
    LOA 199.9 m
    B 32.26 m
    Ts 13.5 m
    DWT@TS 64,600 MT
    Speed @Ts 13.45 knots
    CSR 5450 kW
    FOC <20.0 t/day
    EEDI-3 -30% incl. all margin

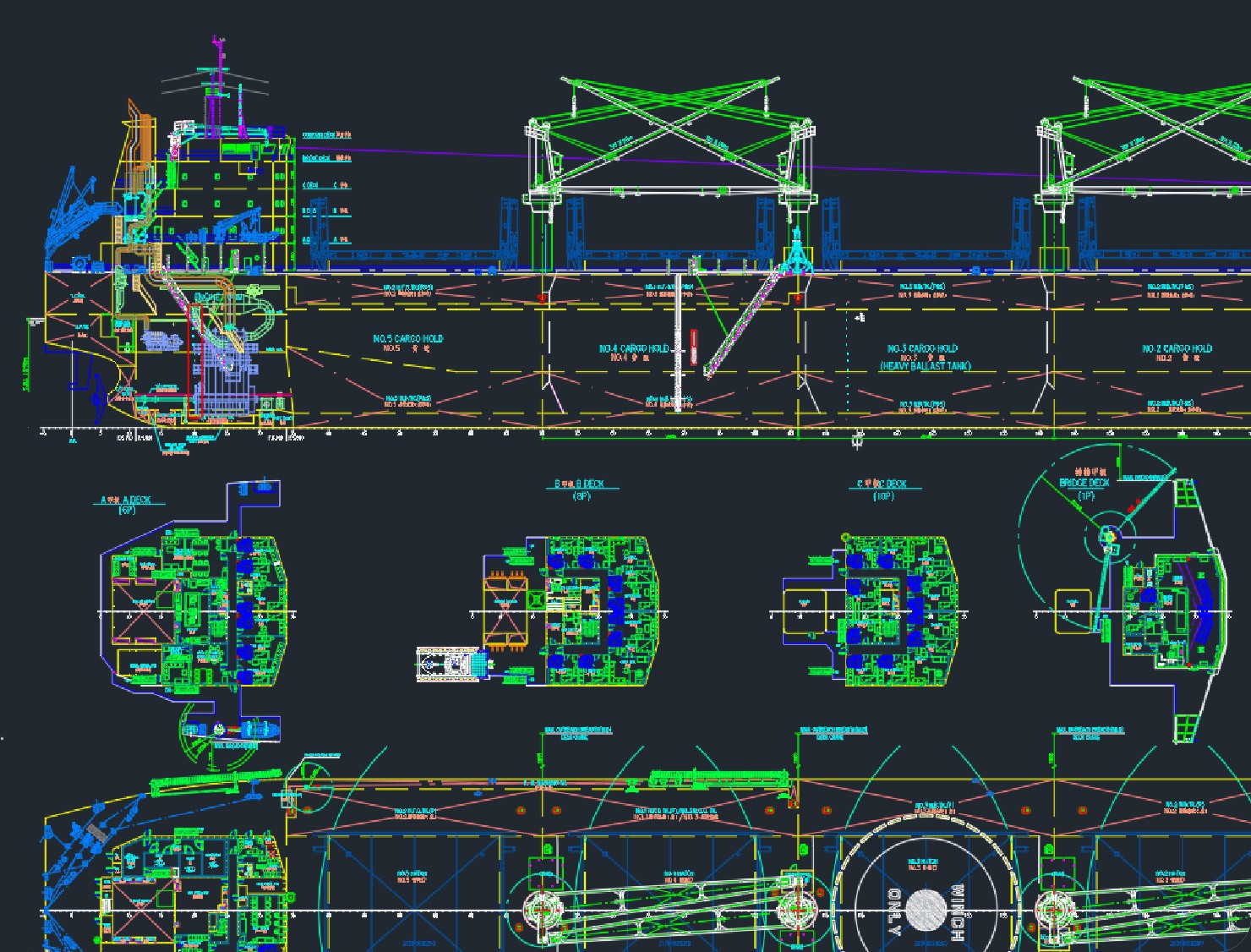

    The Ultramax BC
  • The Panamax BC
    LOA 229.0 m
    B 32.26 m
    Td 12.2 m
    Ts 14.5 m
    DWT@TS 82,500 MT
    Speed @Td 14.0 knots
    CSR 6200 kW
    FOC <23.8 t/day
    EEDI-3 -30% incl. all margin

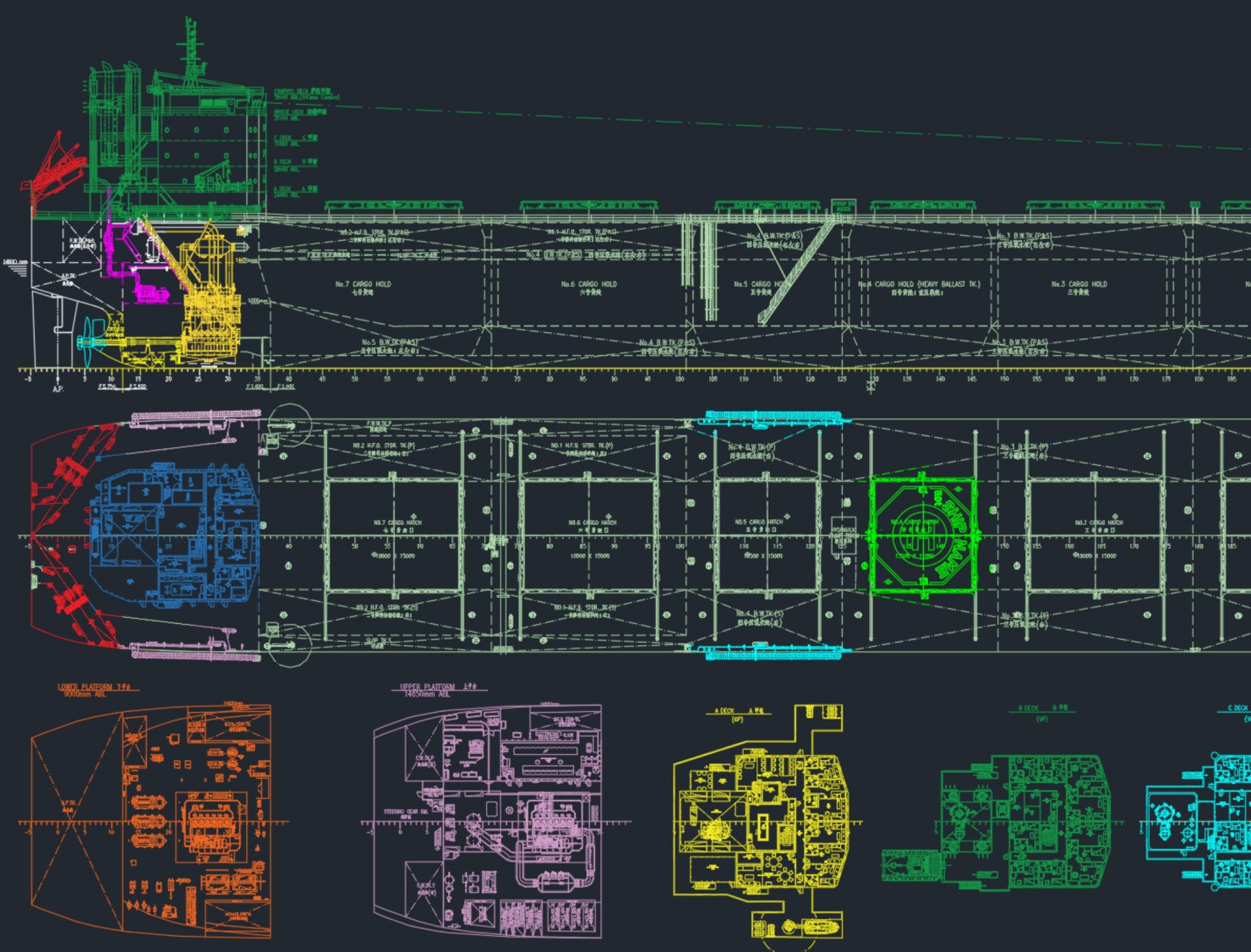

    The Panamax BC
  • The Kamsarmax BC
    LOA 228.9 m
    B 37.0 m
    Td 11.5 m
    Ts 14.5 m
    DWT@TS 88,800 MT
    Speed @Td 14.0 knots
    CSR 6350 kW
    FOC <23.4 t/day
    EEDI-3 -30% incl. all margin
    The Kamsarmax BC
The PATHPLUS optimized Ship-Types available for green shipping

Tanker Designs

Bulker Designs

Tailor Made Designs

50,000 DWT MR Tanker

6,000 DWT DHBC

1100 TEU Container

55,000 DWT MR Tanker

8,000 DWT DHBC

1200TEU Container

75,000 DWT LR Tanker

15,000 DWT OHDHBC

1900TEU Container

115,000 DWT Aframax Tanker

25,000 DWT DHBC

7500DWT Cement Carrier

158.000 DWT Suezmax Tanker

33,300 DWT DHBC

45M Passenger Ship for Diving

308,000 DWT VLCC

34,000 DWT DHOHBC

45M Diving Yacht

320,000 DWT VLCC

35,000 DWT DHBC

Tug-Boats

R&D Projects

37,000 DWT DHBC

64,000 DWT BC

CO2 Carrier

47,500 DWT BC

65,000 DWT DHBC

Ammonia Carrier

48,000 DWT BC

82,000 DWT BC

Full Electric  Tug-Boat

53,000 DWT BC

85,000 DWT BC

Full Electric Container Ship

96,000 DWT BC

88,000 DWT BC
